The Stainless Steel Concealed Clip is used with Full Surround Grilles.
The Clip slips between the glass and the edge of a wood or aluminum sash.
There are 3 sizes to choose from: Standard Profile, Low Profile and Standard Profile No Barb.
The grille surround (perimeter frame) should have a groove on the outside edge for the clip to fit into. (See Product Images)
Warning: Your sash should have enough room for the clip to be inserted. It is helpful if the sash is glazed with a rubber boot or foam glazing strip.
Available packaged in lot quantities of 25, 50, and 100.

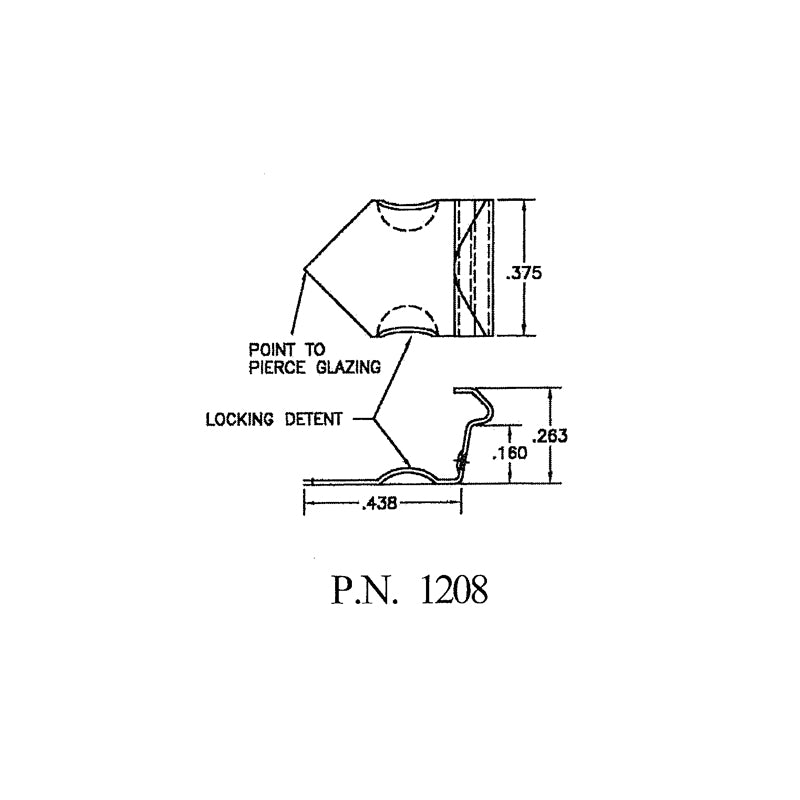

Low Profile Size - 1208
- Overall Length: 0.5"
- Base Length: 0.438"
- Height: 0.263"
- Width: 0.375"
- Thickness: 0.012"
To purchase larger quantities call 952-230-7252.
