Fasteners for Fixhome Non Surround Grilles

Fasteners for Fixhome Standard Profile Non-Surround Grilles

Fixhome offers several mechanical fasteners for our Standard Profile non surround wood grille bars. The following 2 are made of clear polycarbonate and work with all standard grille bar profiles.

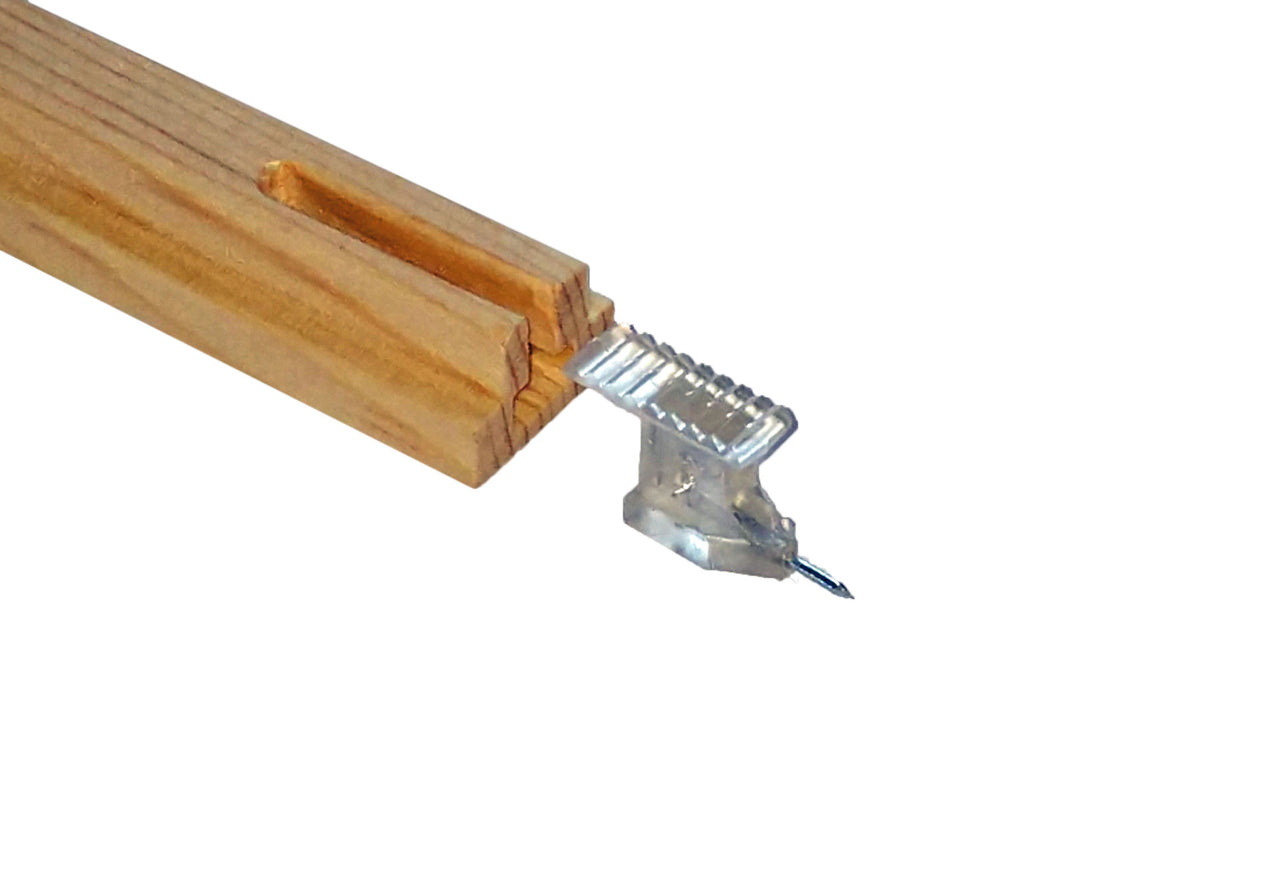

  • LCS-034 for use on "M" Basic Profile bar only



The fastener used on Fixhome wood grilles is the Slide Pin. This fastener has grips on the sides. There are 2 sizes of Slide Pins for Standard Profile grilles.

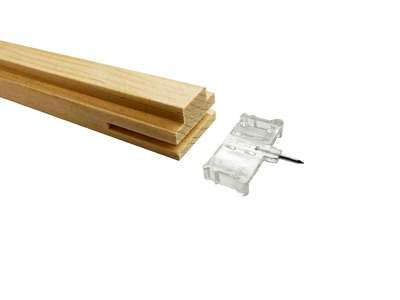

N-PINE BAR WITH LCS-028C PUSH PIN
  • LCS-047 for use on 5/8" wide bars
  • LCS-028C for use on 7/8" wide bars

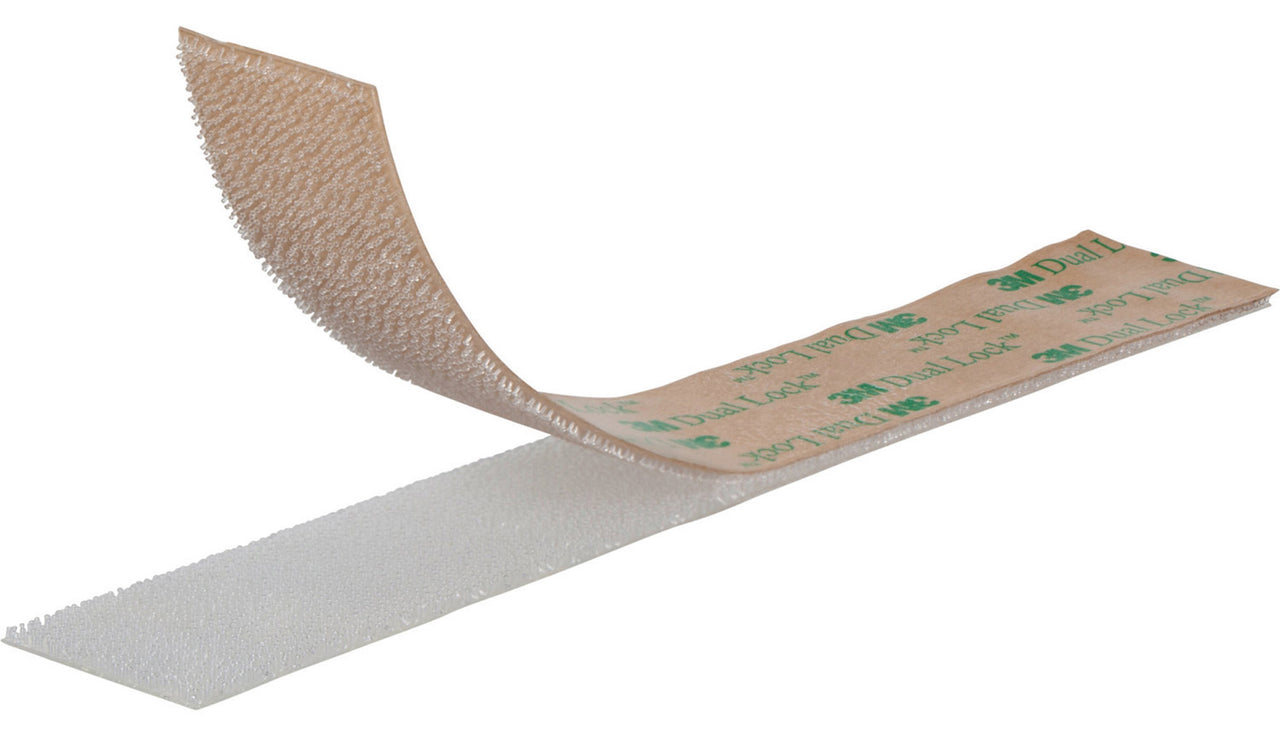

Another type of grille fastener is an adhesive backed fastener called Dual Lock. This fastener, produced by 3M, is a low-profile product that attaches the grille directly to the glass. Dual Lock interlocks face to face with itself so application is easy. Dual Lock can be detached from its mating partner to remove the grille for cleaning and then reattached. Dual Lock works well with white or light-colored grilles.

Using Dual Lock with dark stained or dark painted bars is not recommended.

Dual Lock Adhesive
  •  Dual Lock for use on all wood & vinyl bars





Fasteners for Fixhome Premium Non-Surround Grilles

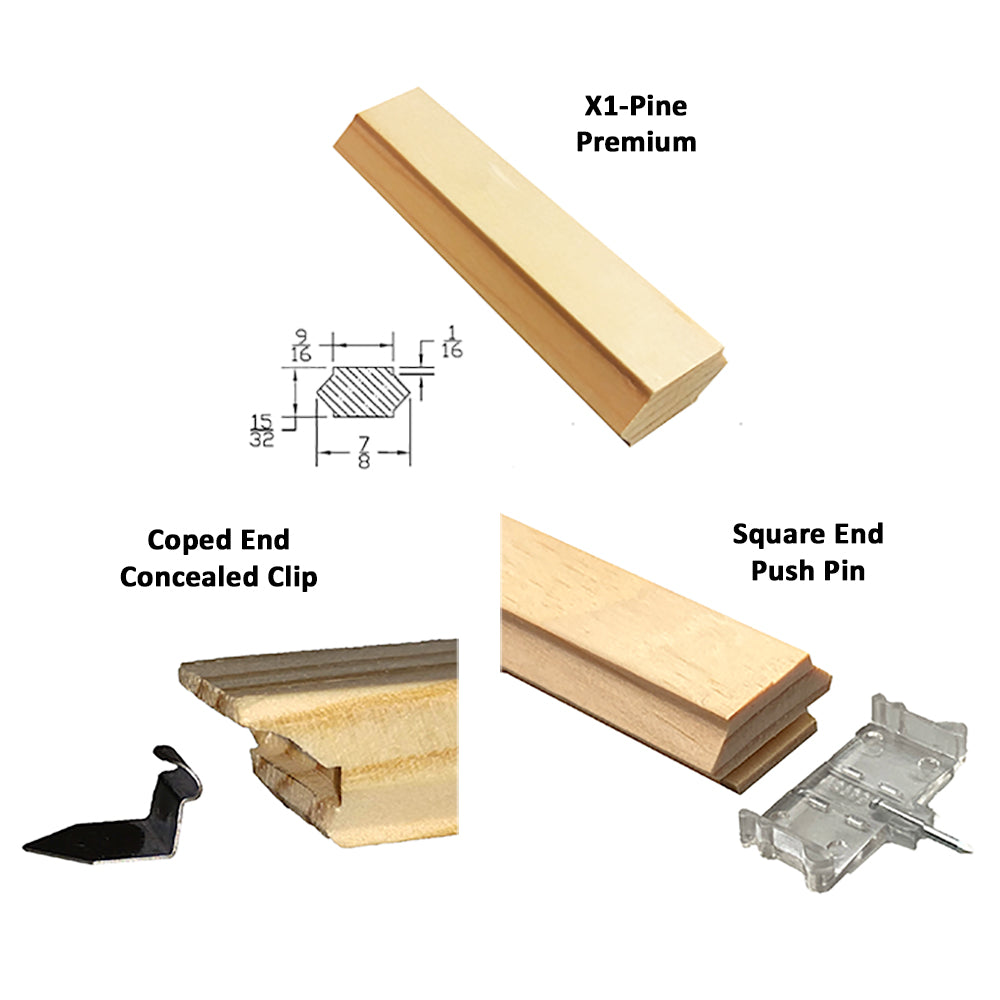

 For those who have Marvin Windows and are looking to replace their grilles, the Premium X1 Pine bar is the closest match. We offer a concealed clip if your window has curved edges at the glass. For non Marvin windows you can install the Premium grille in any wood window using a push pin.

Premium Grille Fasteners & Dimensions

Fasteners for Fixhome Low Profile Non-Surround Grilles

Fixhome offers 2 types of fasteners for Low-Profile grille bars, 1 mechanical fastener and Dual Lock adhesive. Low Profile bars are used when slide by clearance is an issue such as vinyl double hung & vinyl glider windows.

For wood windows we offer 1 clear poly carbonate fastener that will work with both wood and vinyl low profile bars.

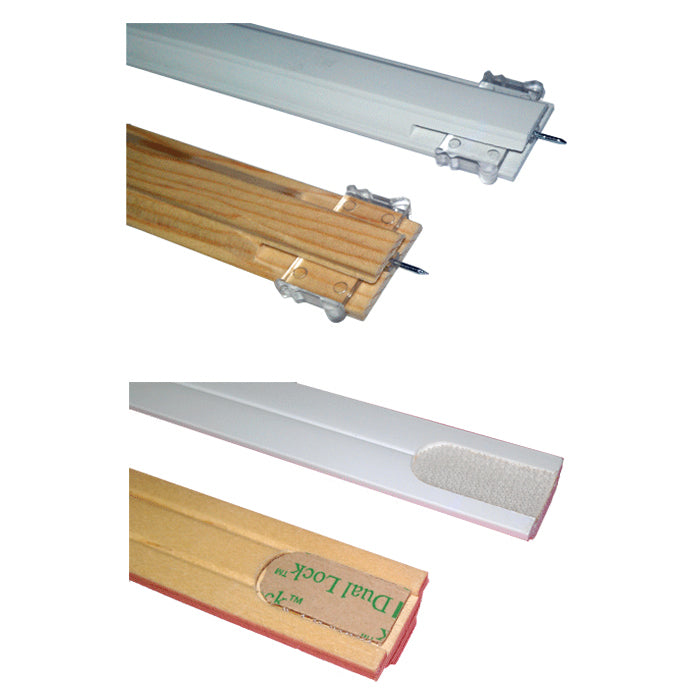

Low Profile Grilles with Push Pin Fasteners
  • LCS-028C for use with S2-Pine and S-Vinyl bars











For vinyl (or wood) where push pins are not an option we offer Dual Lock Adhesive.

  • Dual Lock for use with S2-Pine and S-Vinyl Bars
    Low Profile Bars with Dual Lock Adhesive

  • When Dual Lock is used we recesses the back of the bars with a small pocket at the ends to keep the profile as low as possible. This provides a small footprint on the glass while maintaining maximum hold.



Fasteners for Fixhome Full Surround Grilles

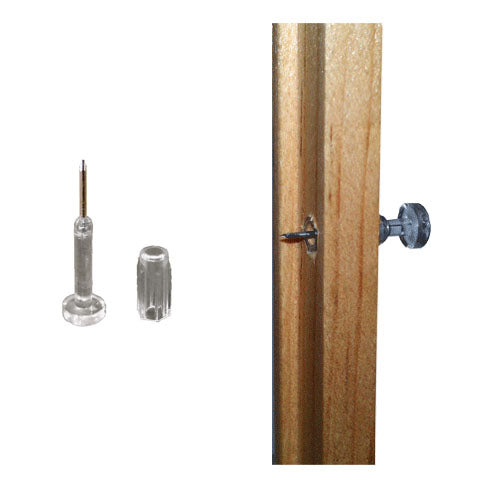

Most full surround grilles require a push pin type of fastener. Fixhome offers a clear plastic push pin that is approximately 1" in length and allows the grille to be easily removed and reattached.

Full Surround Push Pin in a surround bar



Fixhome Full Surround Grilles have a minimum of 4 pins for a secure hold. A 7/32" diameter hole is drilled in the surround and a sleeve (grommet) is pressed in to extend the life of the wood during removal and re-installation.

  • LCS-017 push pin for use with full surround grilles
  • LCS-016 grommet for use with full surround push pins

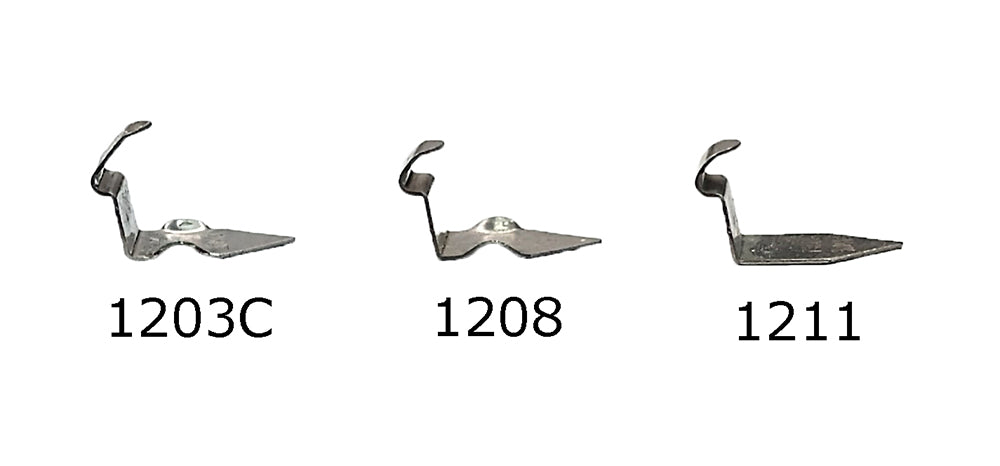

Stainless Steel Concealed Clip

Another less common full surround grille fastener is the Stainless Steel Concealed Clip. This fastener is pressed into the edge of the window at the glass and the grille surround, having a receiving groove around the edge, snaps into the clip making the fastener hidden. Fixhome full surround grilles are not currently using this type of fastener however they are available to purchase in the Grille Fastener collection.



Bronze Wrap Around Clip

The Wrap Around Clip is another mechanical fastener but is limited to one bar profile. It is made from roll form aluminum and only works with Standard Profile "M" pine (5/8" x 7/16) grille bar. It is available in white or bronze (pictured).



All of the above fasteners and more are available in our Grille Fastener collection.
