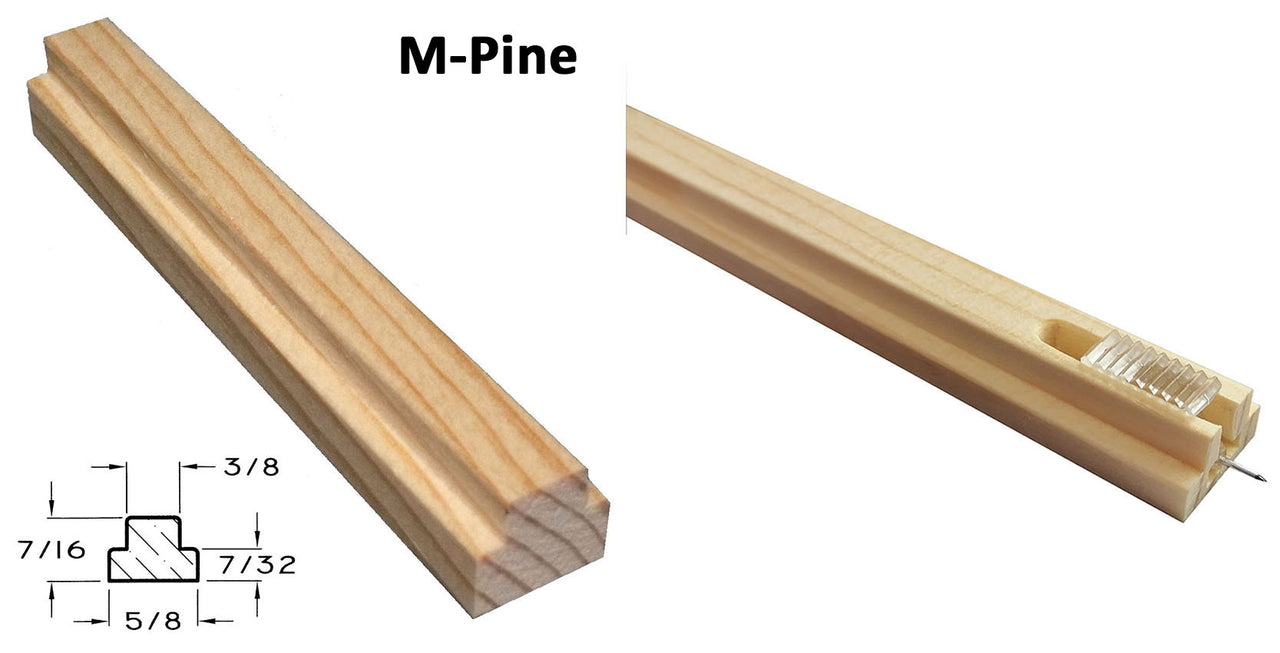

M-Pine Grille bar with size insert on left and bar showing push pin fastener on right

Basic Profile Grilles:

This simple profile can be used in most any wood window where slide-by-clearance is not an issue. The Basic Profile Grille offers 1 bar profile; M-Pine (7/16" x 5/8") and one fastener; (LCS-034 Anvil Pin).

M-Pine - 7/16" x 5/8"

Click to Order

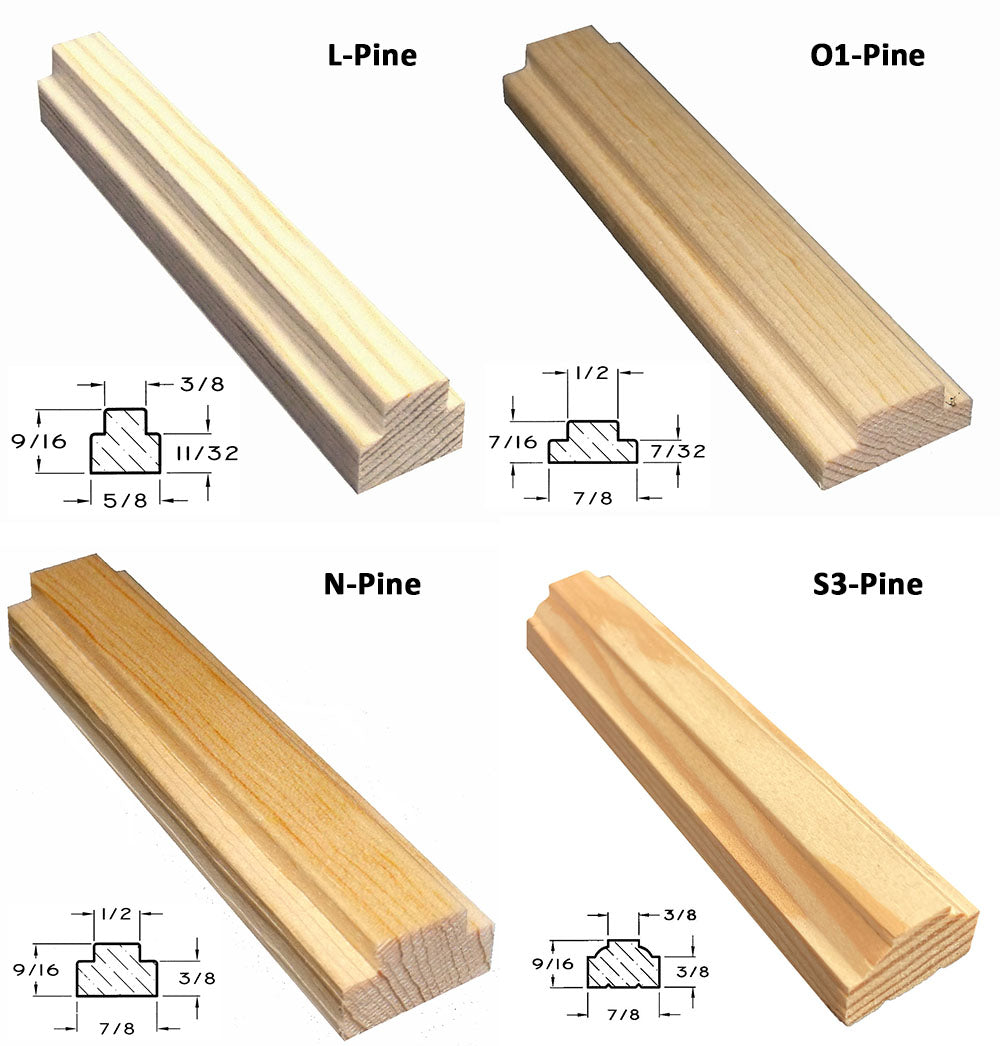

4 Standard Grille Bar Profiles combined with size insert

Standard Profile Grilles:

Should be used where slide-by clearance is not an issue. Examples include wood double hung, casement windows, and wood patio doors. Images show inside view.

L-Pine - 9/16" x 5/8"

O1-Pine - 7/16" x 7/8"

N-Pine - 9/16" x 7/8"

S3-Pine - 9/16" x 7/8"

Click to Order

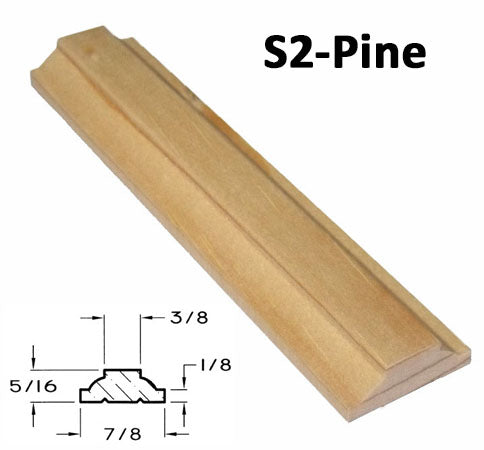

S2-Pine Grille bar with dimension insert

Low Profile Wood Grilles:

Use this where slide-by clearance presents a challenge, such as with vinyl double-hung windows, glider/slider windows, and vinyl patio doors. The profile is a mere 5/16" in height, thus requiring at least 3/8" clearance in your window.

S2-Pine - 5/16" x 7/8"

Click to Order

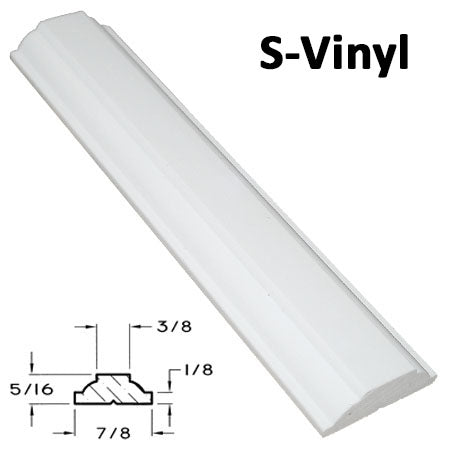

S-Vinyl Low Profile Grille Bar with dimension insert

Low Profile Vinyl Grilles:

This product is made from PVC vinyl and is ideal for situations where slide-by clearance is a concern, such as with vinyl double-hung, glider/slider windows, and vinyl patio doors. The profile height is 5/16", requiring a minimum clearance of 3/8" in your window.

S-Vinyl - 5/16" x 7/8"

CLICK TO ORDER

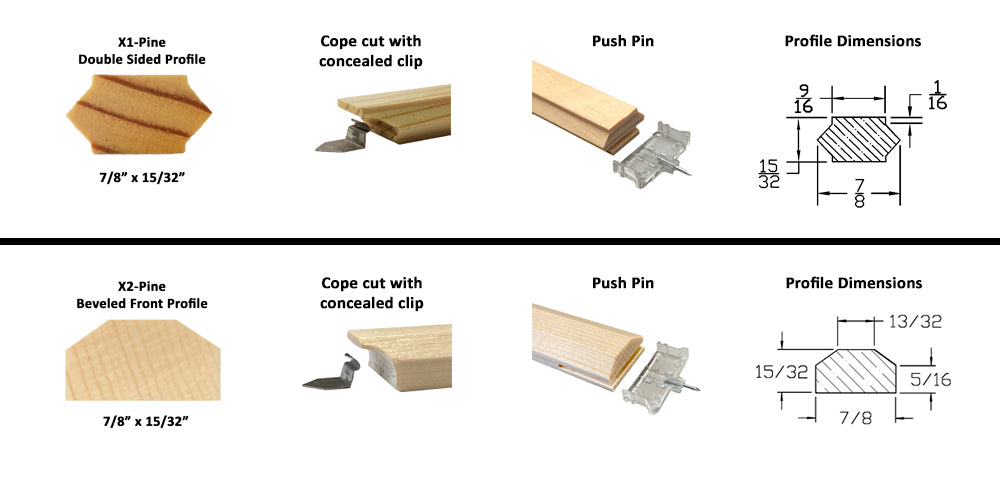

Premium Profiles with fasteners and detail drawings with dimensions
  • Premium Profile Grilles:

Choose the Premium Grille profile if you have windows from the Marvin Integrity line, or if you're looking for an incomparable finished look for your windows. Premium profile grilles feature an invisible fastener system with stylized cope cuts or square end cut with a push pin.

X1-Pine - 7/8" x 15/32"

X2-Pine - 7/8" x 15/32"

Click to Order

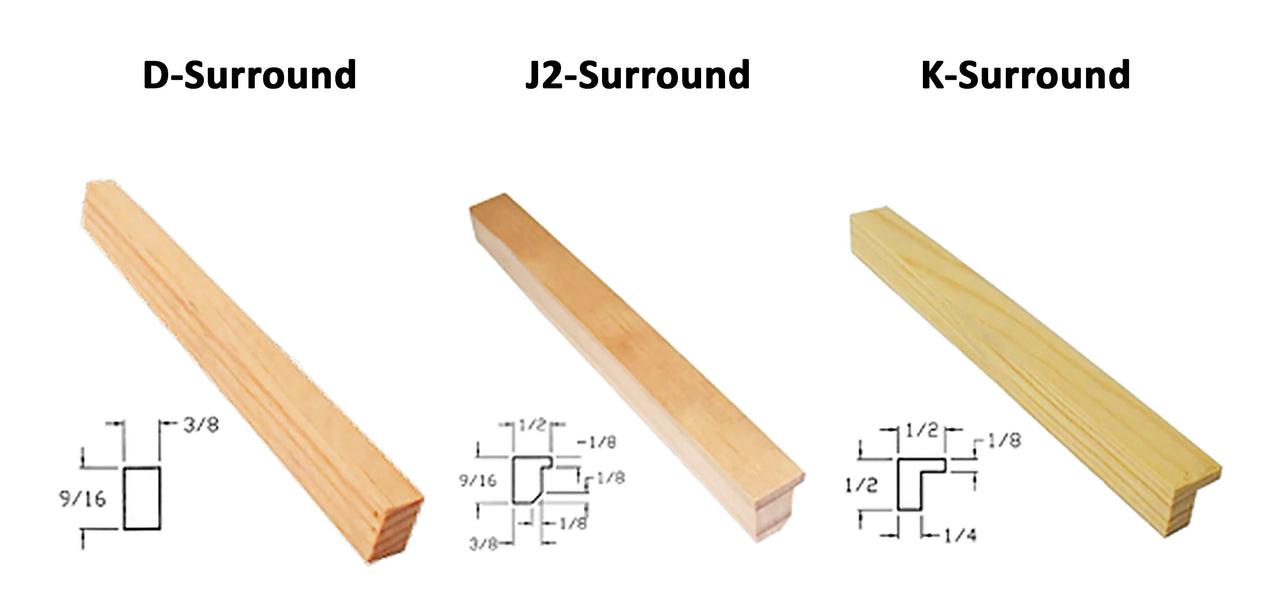

Image showing 3 different grill bar surround profiles.

Full Surround bar profile information:

D-Surround - 3/8" x 9/16"

J-2 Surround - 1/2" x 9/16"

K-Surround - 1/2" x 9/16"

Window grille features:

Pine wood species are unfinished ready to paint or stain

Primed White or Grey is available

Fasteners are included with all grilles

Custom cut to fit your dimensions

Multiple profiles to choose from

Bottom of profiles fit against the glass

If you have any questions about which profile is right for you, contact us!
