10 Light

$152.80
$152.80
Select Orientation
Select Grille Bar Profile
Select Surround Profile
Visible Glass - whole inch only - See Figure 1
(NO INCH MARKS)
Visible glass - whole inch only
(NO INCH MARKS)
Select Natural for Unfinished Grille
Select Primed White for light color paints: White, Yellow, Tan
Select Primed Grey for dark color paints: Black, Bronze, Dark Blue
Please choose 1 option

Customizations Total: $0.00

Product Description

Price includes shipping!

Give your window the classic look of a Colonial divided light.
Wood Grille: Paint it, Stain it, Customize to match your décor.
Fasteners are included.
Removal is simple to make cleaning your window a snap.
Ordering is just as easy, select your choice of surround and grille bar profiles, specify your visible glass dimensions then click "Add To Cart"! Grilles shipped fully assembled.

Which profile should I choose?

How to measure your window

Details

Our window grilles are custom made to fit the dimensions provided by you. Click here for information about our Return Policy

Application: For casement and double hung windows with wood interior sash. Interior Use Only.
Total Lights: 10
Pattern: 2 Wide x 5 Tall or 5 Wide x 2 Tall
Material: Pine

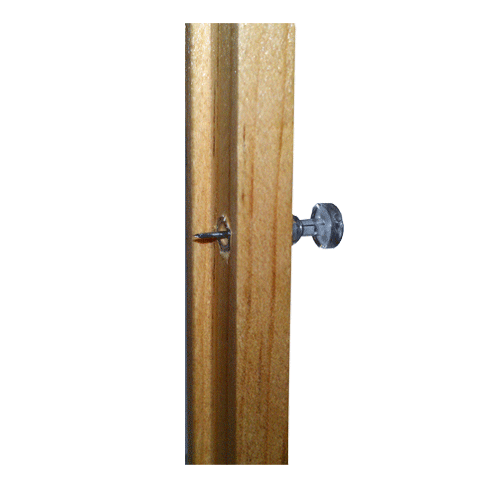

Fastener: Push pins – clear plastic with stainless nail (Included)

Surround Profile Specs:

  • D-Surround - 3/8" x 9/16"
  • J-Surround - 1/2" x 9/16"
  • K-Surround - 1/2" x 9/16"

Grille Bar Profile Specs:

  • L-Bar - 5/8" x 9/16"
  • N-Bar - 7/8" x 9/16"
  • S3-Bar - 7/8" x 9/16"
  • X1-Bar - 7/8" x 15/32"
  • X2-Bar - 7/8" x 15/32"

NOTE: For upper sash grilles that require a sash lock please call 952-230-7252 for instructions on how to provide sash lock notch information.

Visible Glass - whole inch only - See Figure 1
(NO INCH MARKS)
Visible glass - whole inch only
(NO INCH MARKS)
Select Natural for Unfinished Grille
Select Primed White for light color paints: White, Yellow, Tan
Select Primed Grey for dark color paints: Black, Bronze, Dark Blue
Please choose 1 option

Customizations Total: $0.00
