Diamond Grille Size Range by Pattern
This page is a guide to help you to know
which pattern diamond grille will fit in your size window.

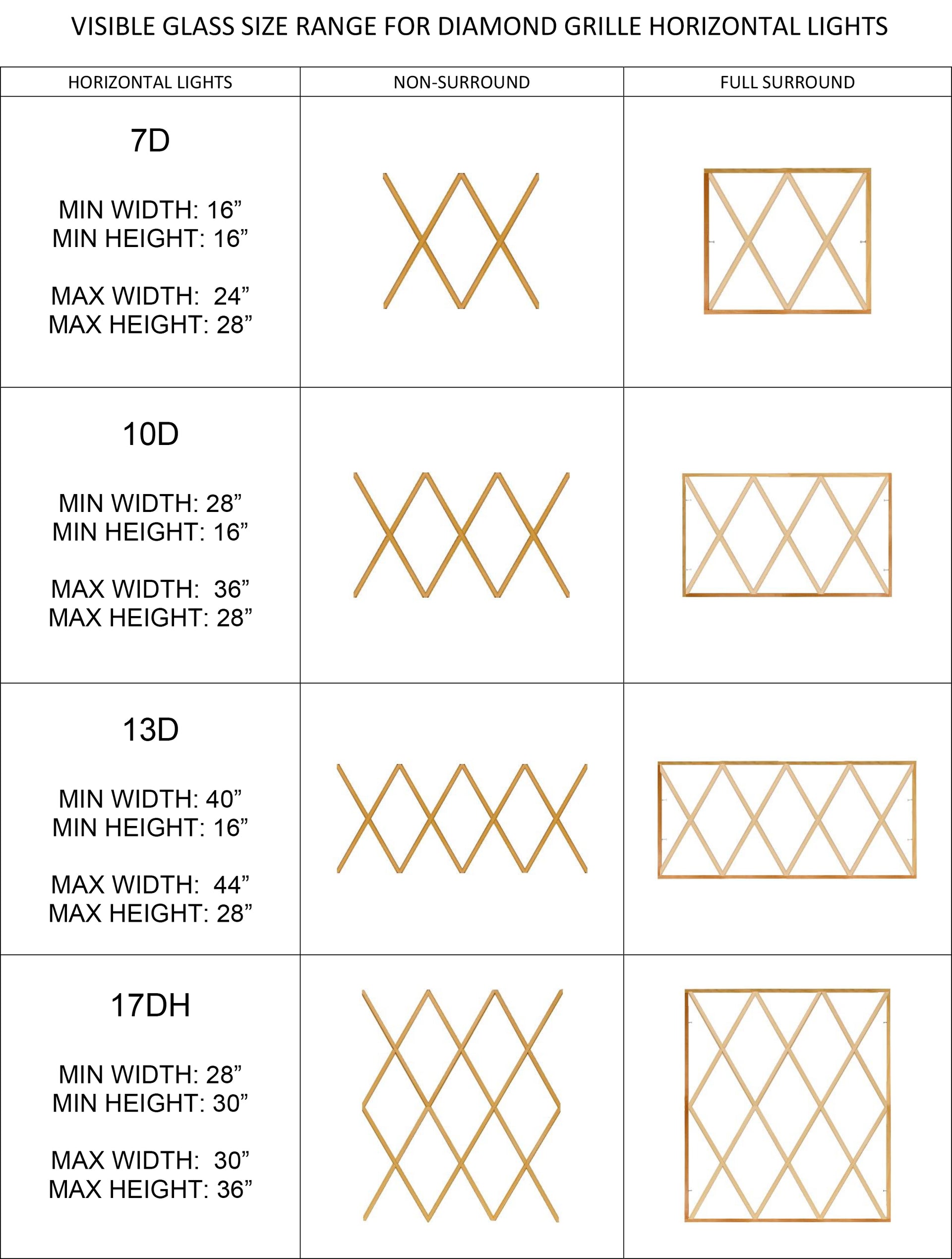

Horizontal Lights
 |
7D Range - 16" to 24" wide ~ 16" to 28" tall |
 |
10D Range - 28" to 36" wide ~ 16" to 28" tall |
 |
13D Range - 40" to 44" Wide ~ 16" to 28" Tall |
 |
17D Range - 28" to 36" Wide ~ 30" to 36" Tall |

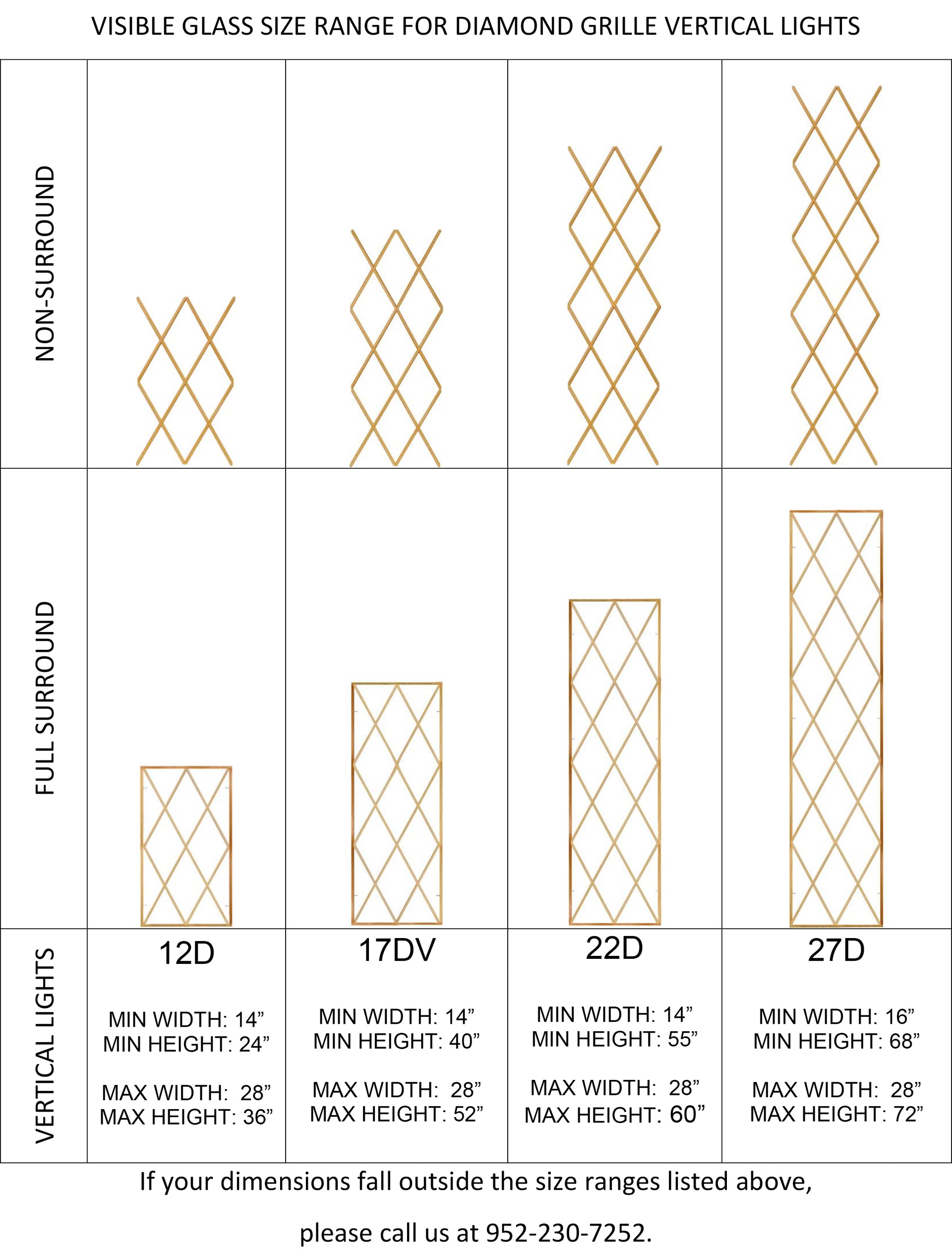

Vertical Lights
|
12D Range - 14" to 28" Wide ~ 24" to 36" Tall |
 |
17D Range - 14" to 28" Wide ~ 40" to 52" Tall |
 |
22D Range - 14" to 28" Wide ~ 55" to 60" Tall |
| 27D Range - 16" to 28" Wide ~ 68" to 72" Tall |
